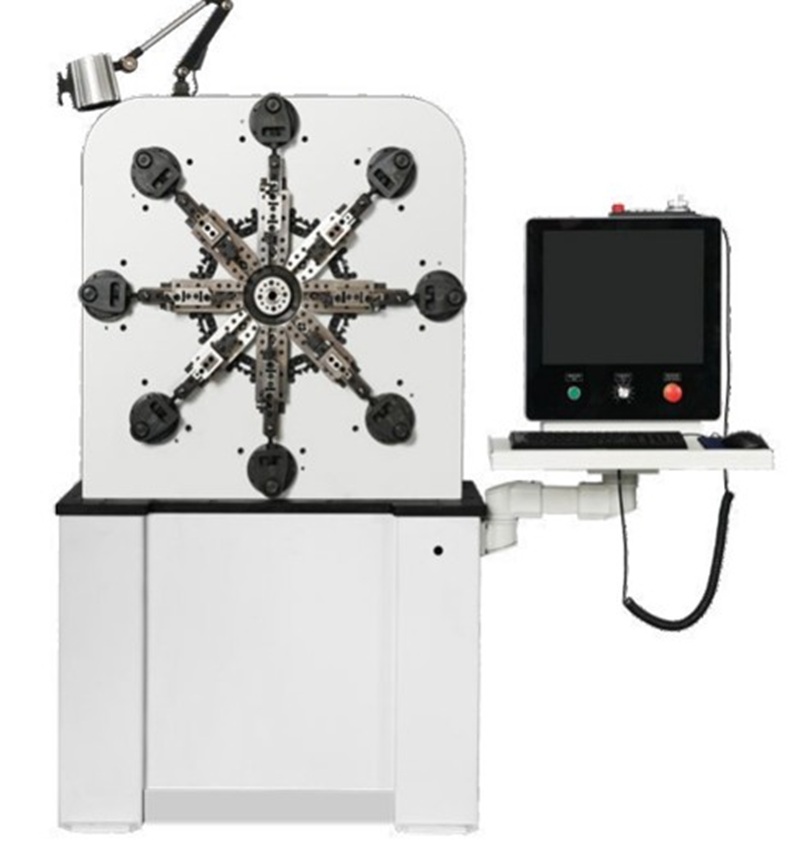

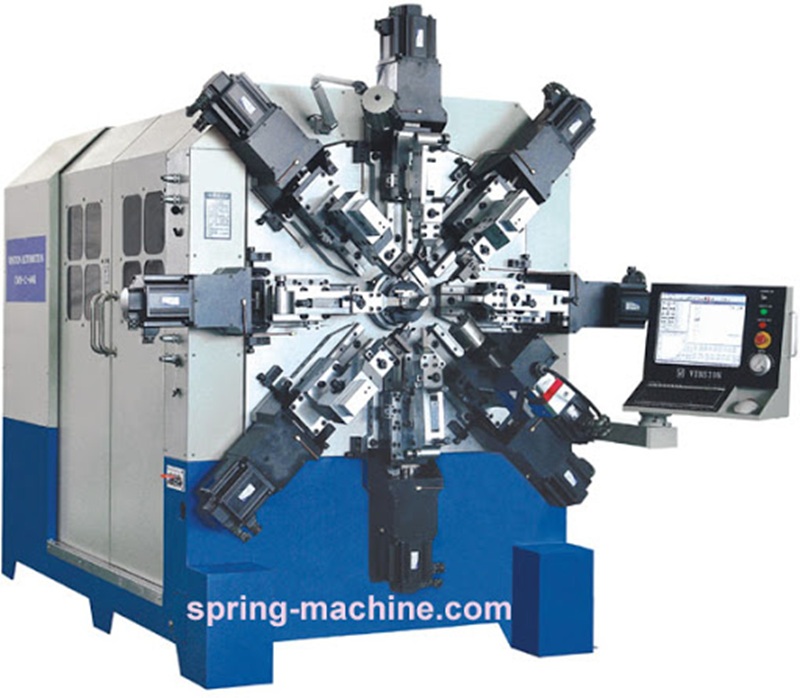

Wire Spring Forming Machine

About Wire Spring Forming Machine

A Spring Forming Machine is a precision CNC machine used to manufacture various types of springs and wire forms by bending, coiling, and shaping metal wire into the desired geometry. These machines are widely used in the automotive, electronics, aerospace, medical, furniture, and industrial equipment industries.

Working Principle

The machine automatically feeds wire from a coil through a set of rollers into the forming area.

The manufacturing process includes:

1. Wire Feeding Servo-controlled rollers feed the wire to the programmed length.
2. Straightening Rollers remove wire curvature.
3. Forming/Bending CNC tools bend and shape the wire.
4. Coiling The wire is wrapped around an arbor for compression or extension springs.
5. Cutting A servo-controlled cutter separates the finished spring.
6. Discharge The completed spring is collected automatically.

Main Components

• Wire Payoff Stand
• Wire Straightening Unit
• Servo Wire Feeding System
• CNC Forming Slides
• Coiling Arbor
• Cutting Mechanism
• Servo Motors
• PLC/CNC Controller
• Touch Screen (HMI)
• Lubrication System
• Safety Guard
