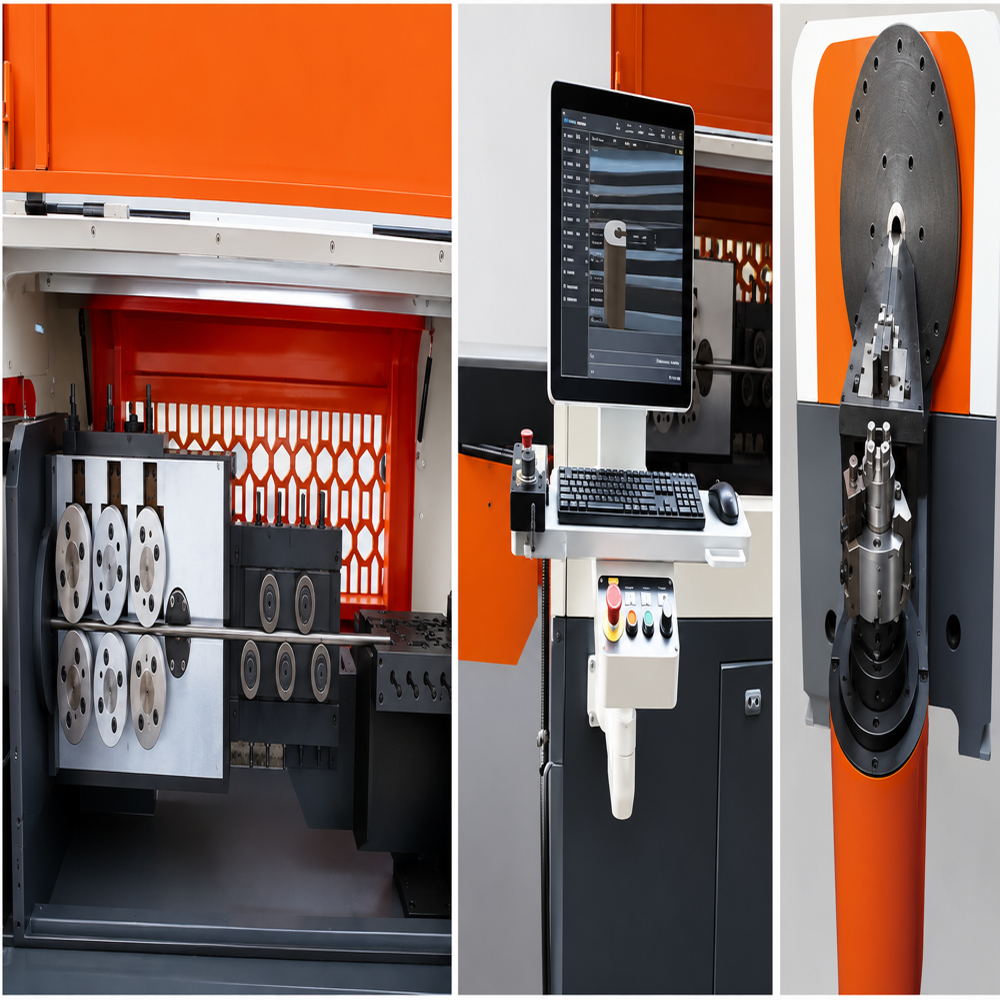

3D CNC Head Rotating Wire Bending Machine

About 3D CNC Head Rotating Wire Bending Machine

A 3D Wire Bending Machine with Head Rotating is a fully automatic CNC wire forming machine designed to manufacture complex three-dimensional wire components with high precision and speed. Unlike conventional 2D wire bending machines, a 3D machine uses a rotating bending head that enables the wire to be bent in multiple planes without manual repositioning.

These machines are widely used in the automotive, furniture, electrical, construction, medical, agriculture, and appliance industries.

Working Principle

The machine operates through a sequence of CNC-controlled movements:

1. Wire Feeding
   • Servo motor feeds the wire from the coil.
   • Feed length is controlled precisely by CNC.
2. Wire Straightening
   • Straightening rollers remove wire curvature.
   • Ensures accurate bending dimensions.
3. Head Rotation
   • The bending head rotates 360.
   • Allows bending in any direction.
4. Wire Bending
   • Servo-controlled bending arm bends the wire according to the programmed angle.
   • Complex 3D shapes are produced without rotating the workpiece.
5. Wire Cutting
   • Finished component is cut automatically.
   • Hydraulic, pneumatic, or servo cutting systems may be used
