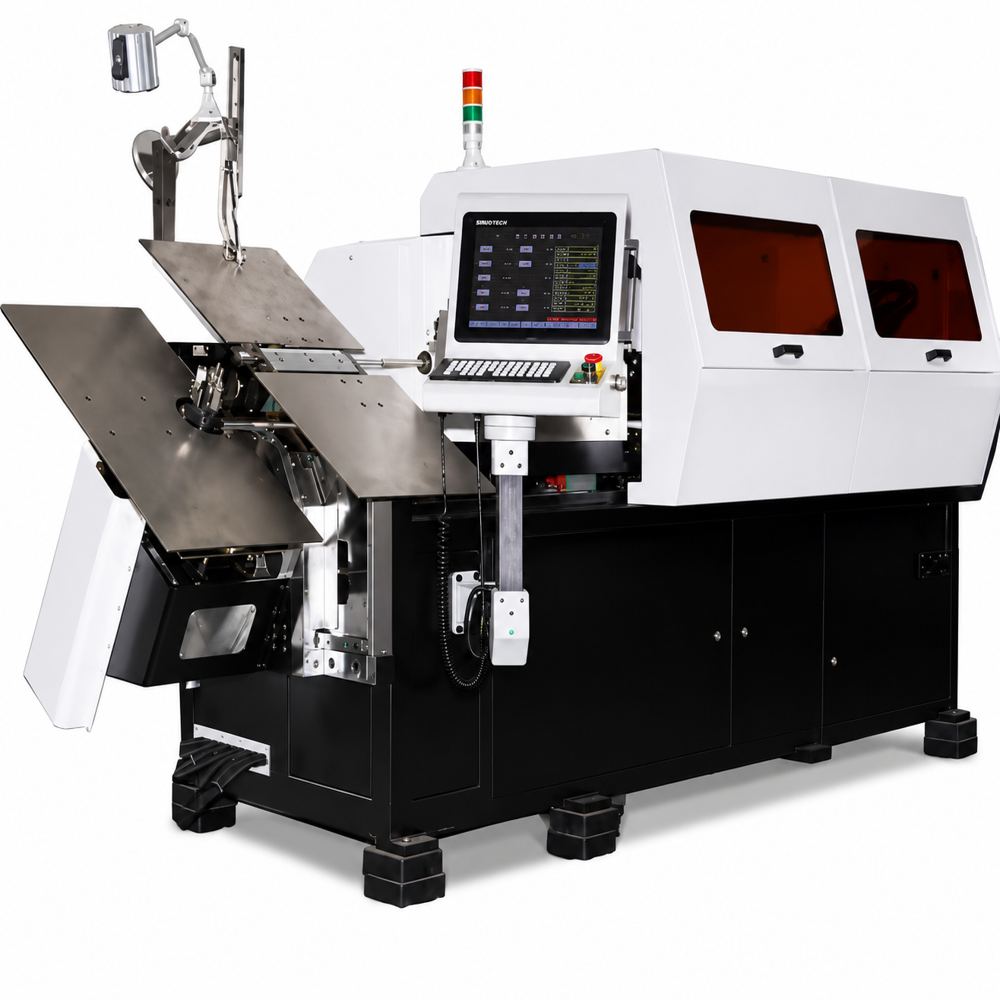

3D CNC Wire Rotating Wire Bending Machine

About 3D CNC Wire Rotating Wire Bending Machine

A 3D Wire Bending Machine is a CNC (Computer Numerical Control) machine designed to automatically feed, straighten, bend, and cut metal wire into complex three-dimensional shapes with high precision. Unlike a 2D wire bending machine, which produces components in a single plane, a 3D wire bending machine can create parts with bends in multiple planes.

Working Principle

The machine operates in the following sequence:

1. Wire Feeding
   • Servo motor feeds the wire from the coil.
   • Feeding length is controlled by CNC programming.
2. Wire Straightening
   • Multiple straightening rollers remove the wire's natural curvature.
3. Wire Rotation
   • A rotary servo rotates the wire to any desired angle.
   • This enables bending in different planes.
4. 3D Bending
   • CNC-controlled bending tools form the required angles and radii.
5. Wire Cutting
   • Hydraulic or servo cutting system cuts the finished part automatically.
6. Finished Part Collection
   • Components are discharged into a collection tray or conveyor.

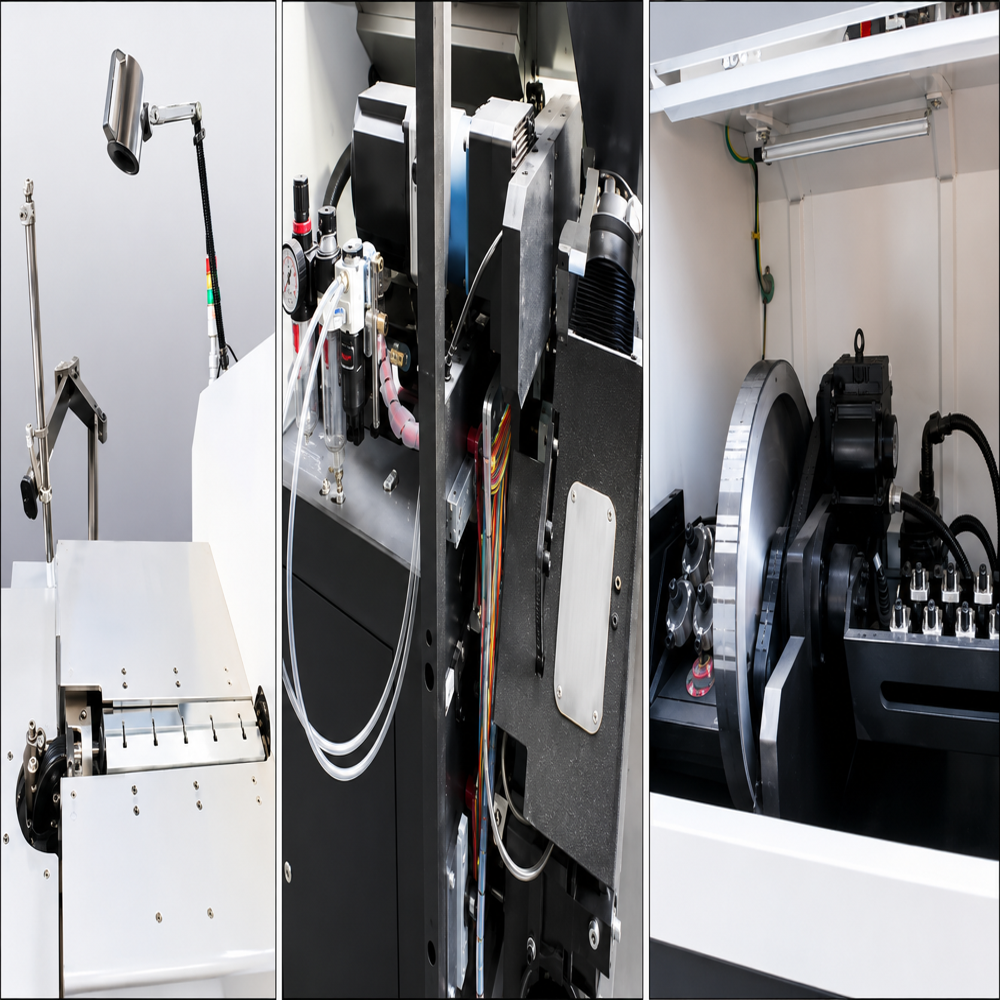

Main Components

• Wire Payoff Stand
• Wire Straightening Unit
• Servo Wire Feeding System
• Wire Rotation (Axis)
• Bending Head
• Servo Motors
• CNC Controller with Touchscreen
• Cutting Mechanism
• Lubrication System
• Safety Enclosure
