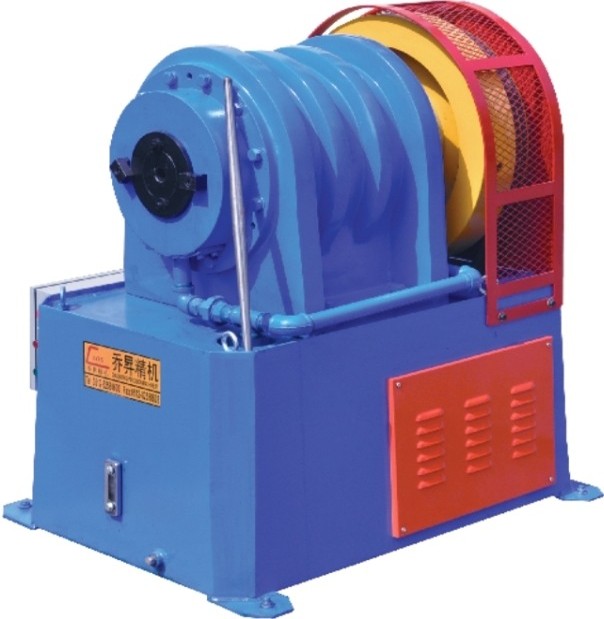

A Taper Pipe End Forming Machine is a specialized metal forming machine used to reduce or reshape the end of a pipe or tube into a conical (tapered) shape without removing material. The process is achieved by applying hydraulic or servo-controlled force through specially designed dies.

Unlike machining, which cuts away metal, end forming plastically deforms the pipe, maintaining its strength while producing a precise taper.

---

Working Principle

The machine operates through the following steps:

1. Pipe Loading
   • The pipe is placed in the clamping fixture.
   • Position is adjusted according to the required taper length.
2. Clamping
   • Hydraulic or pneumatic clamps firmly hold the pipe.
3. Forming
   • A forming die moves over the pipe end.
   • Hydraulic cylinders or servo motors apply controlled pressure.
   • The pipe end gradually reduces to the desired diameter.
4. Release
   • The die retracts.
   • The clamp opens.
   • Finished pipe is removed.

---

Main Components

---

Types of Taper Forming

1. Single-End Taper

One end of the pipe is tapered.

Applications:

• Furniture
• Automotive tubes
• Bicycle frames

---

2. Double-End Taper

Both ends are tapered.

Applications:

• Structural tubing
• Exhaust systems
• Hydraulic pipes

---

3. Long Taper

Used where gradual reduction is required.

Applications:

• Fluid transfer
• Aerospace
• Special fittings

---

4. Short Taper

Steeper reduction over a shorter distance.

Applications:

• Tube insertion
• Ferrule connections

---

Machine Specifications (Typical)

---

Materials Processed

• Mild Steel (MS)
• Stainless Steel (SS)
• Carbon Steel
• Aluminum
• Copper
• Brass
• Titanium (with suitable tooling)

---

Advantages

• High production speed
• Smooth and consistent taper
• No material wastage
• Improved joint strength
• Better appearance
• High dimensional accuracy
• Repeatable production
• Low operating cost
• Suitable for automation

---

Applications

Automotive

• Exhaust pipes
• Chassis tubes
• Fuel lines
• Steering columns

Furniture

• Chair frames
• Table legs
• Display racks

HVAC

• Air-conditioning tubes
• Refrigeration piping

Construction

• Scaffolding
• Handrails
• Structural tubing

Bicycle Industry

• Frame tubes
• Handlebar components
• Seat posts

Medical

• Surgical instruments
• Medical support tubes

---

Typical Production Process

Raw Pipe


Pipe Loading


Pipe Clamping


Hydraulic Taper Forming


Inspection


Finished Taper Pipe

---

Safety Features

• Emergency stop button
• Safety guard enclosure
• Pressure relief valve
• Two-hand operation (optional)
• Overload protection
• Low-oil level alarm
• PLC fault diagnostics
• Safety interlock switches
