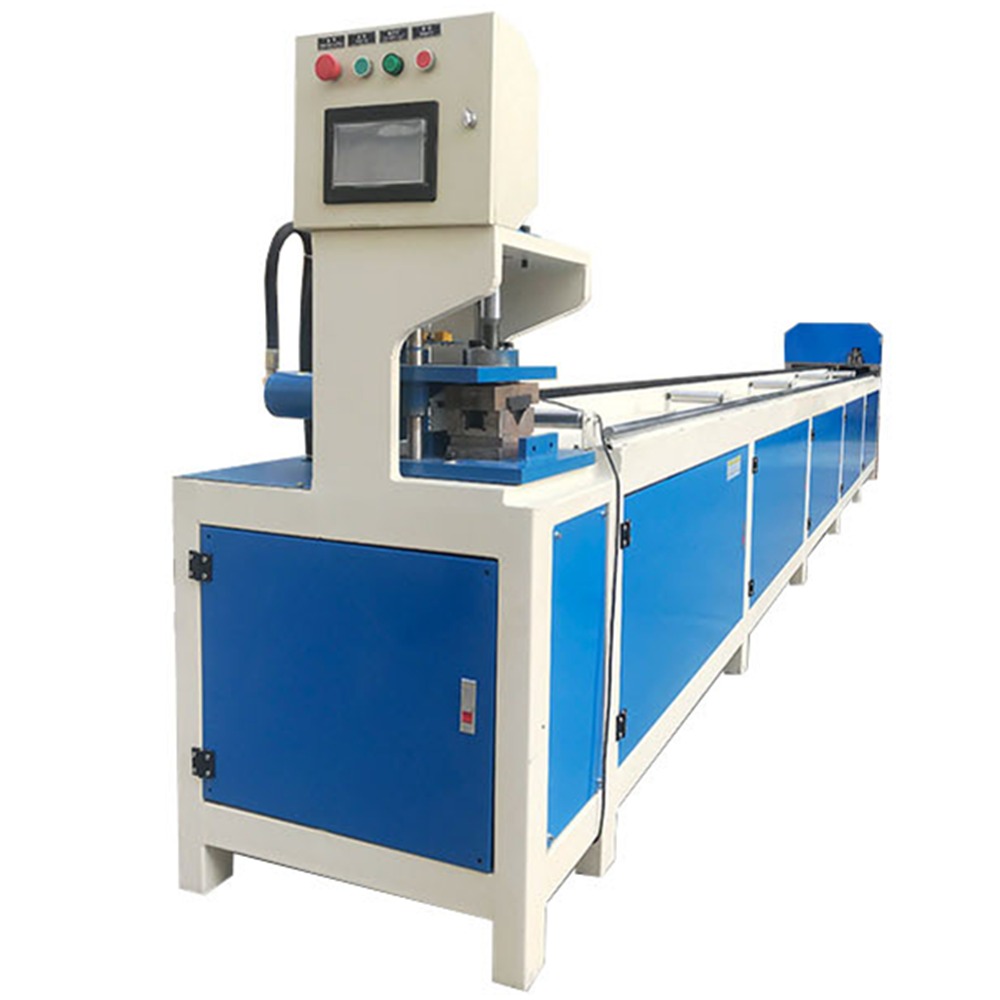

Pipe Notching Machine

Name: Pipe Notching Machine
Brand: ADVANCE AUTOMATION MACHINERY
Price: 1149999.0 INR
Availability: InStock

Price 1149999.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Pipe Notching Machine Specification

Phase
3

Technology
PLC Control

Usage & Applications
Pipe Notching

Working Area
250 Square Millimeter (mm2)

Power
5000 Volt (v)

Product Type
Pipe Notching

Laser Type
Other

Material
Metal

Cutting Thickness
50 Millimeter (mm)

Cutting Area
50 Square Millimeter (mm2)

Cutting Speed
8 m/m

CNC Or Not
Normal

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Other

Control Software
PLC

Graphic Format Supported
Other

Control System
PLC Control

Voltage
440 Volt (v)

Weight (kg)
800 Kilograms (kg)

Dimension (L*W*H)
10*10*8 Meter (m)

Capacity
30 Pcs/hr

Feature
Touch Screen, ECO Friendly, High Efficiency, Low Noise, Simple Control, Lower Energy Consumption, High Performance

Color
Silver

Warranty
1 Year

Pipe Notching Machine Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
50 Days

Packaging Details
Wooden

About Pipe Notching Machine

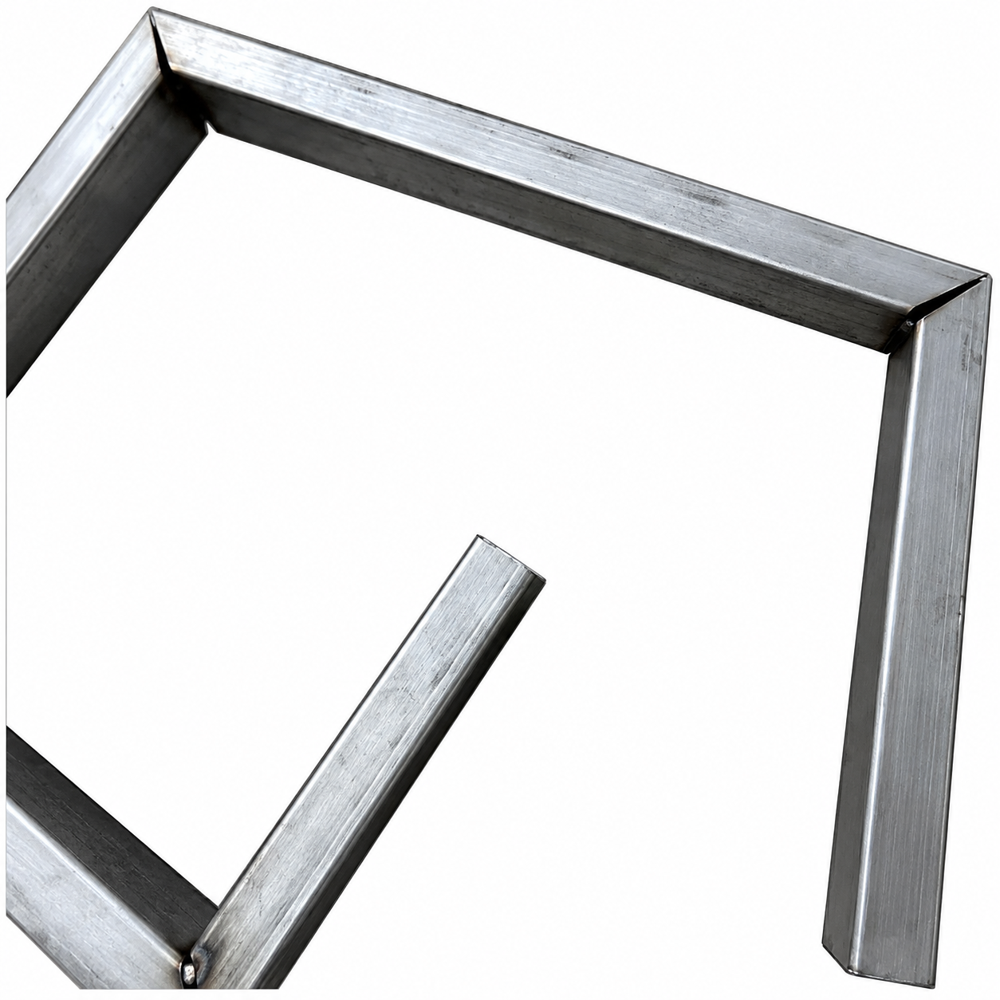

A Pipe Notching Machine (also called a Tube Notching Machine) is a machine used to create precise notches or saddle cuts at the end or middle of a pipe or tube. These notches allow two pipes to fit together accurately before welding, improving joint strength and appearance.

It is widely used in industries such as:

Furniture manufacturing
Automotive exhaust systems
Handrails and railings
Bicycle and motorcycle frames
Roll cages
Structural steel fabrication
Food and pharmaceutical piping
Construction and fabrication workshops

Working Principle

The pipe is clamped securely.
The operator sets the notch angle and depth.
A cutting tool (hole saw, milling cutter, abrasive belt, or end mill) rotates at high speed.
The cutter removes material from the pipe.
The finished notch matches the diameter of the mating pipe, allowing a perfect fit before welding.
