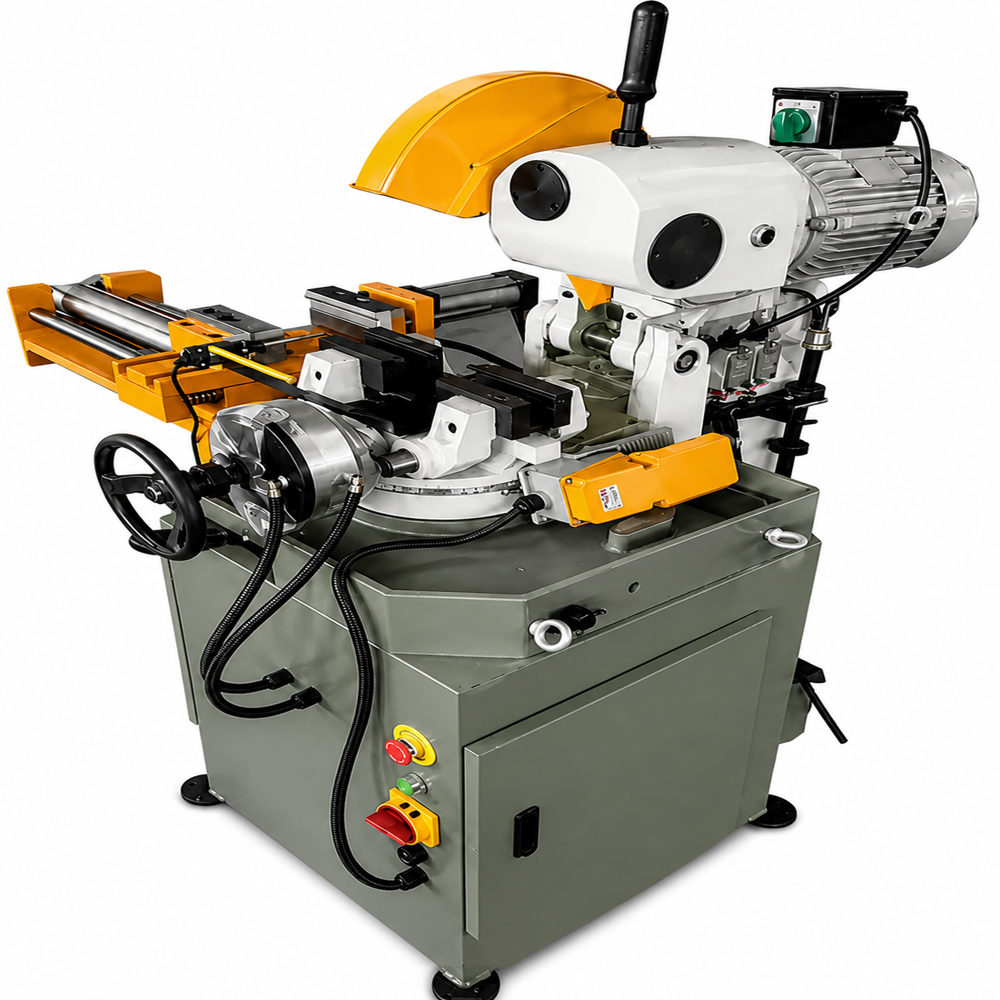

Semi-Automatic Pipe Cutting Machine

About Semi-Automatic Pipe Cutting Machine

A Semi-Automatic Pipe Cutting Machine is an industrial machine designed to cut metal pipes, tubes, and solid bars with high accuracy and repeatability. Unlike a fully automatic machine, the operator manually loads the material, while the machine performs the clamping and cutting cycle automatically. These machines are widely used in fabrication shops, automotive industries, furniture manufacturing, construction, and engineering industries.

Working Principle

1. The operator places the pipe on the machine bed.
2. The pipe is aligned with the cutting length using a manual stop or measuring scale.
3. The operator manually feeds the pipe to the required position.
4. Hydraulic or pneumatic clamps securely hold the pipe.
5. The operator presses the start button.
6. The saw blade descends automatically and cuts the material.
7. After cutting, the blade retracts automatically.
8. The clamp releases, allowing the operator to remove the cut piece and load the next one.

Main Components

• Machine Frame (Heavy-duty steel construction)
• Circular Saw Blade or HSS/TCT Blade
• Hydraulic Clamping System
• Cutting Head Assembly
• Coolant System
• Electric Motor
• Gearbox
• Control Panel
• Material Support Roller
• Safety Guard
• Limit Switches and Sensors
