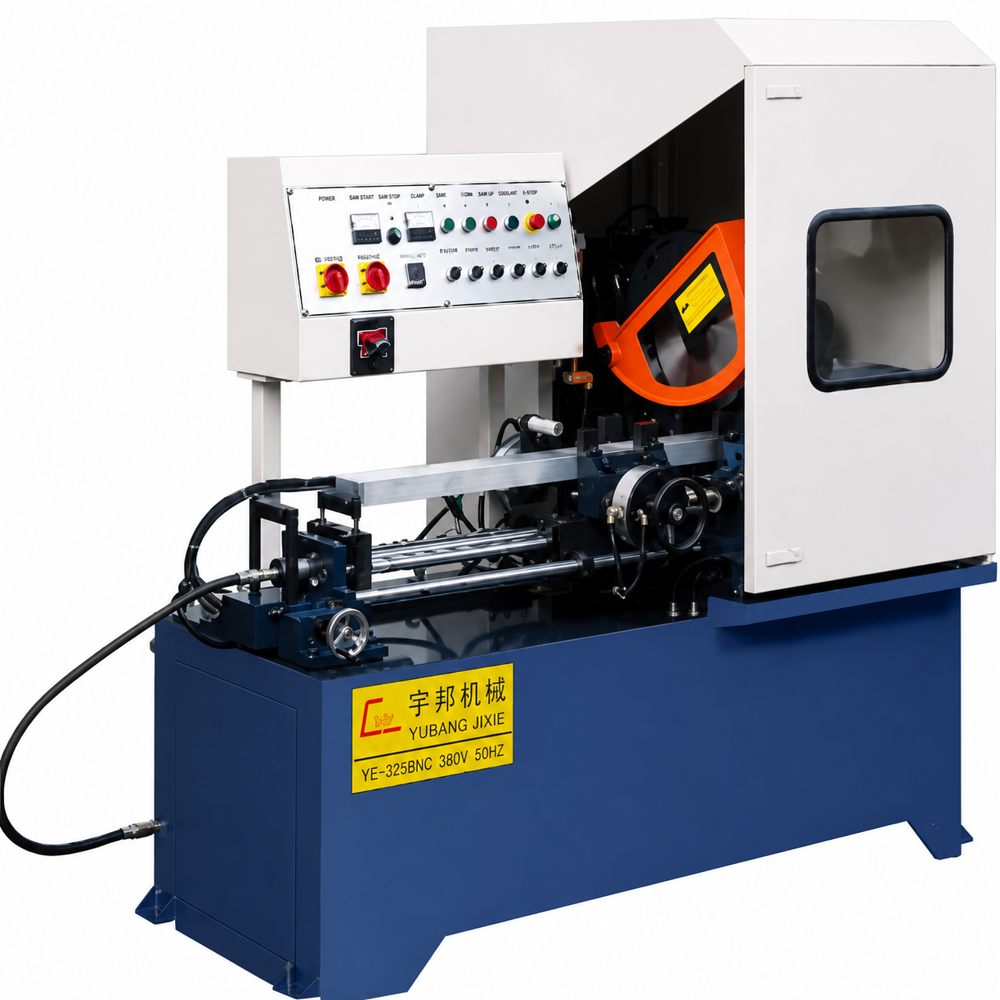

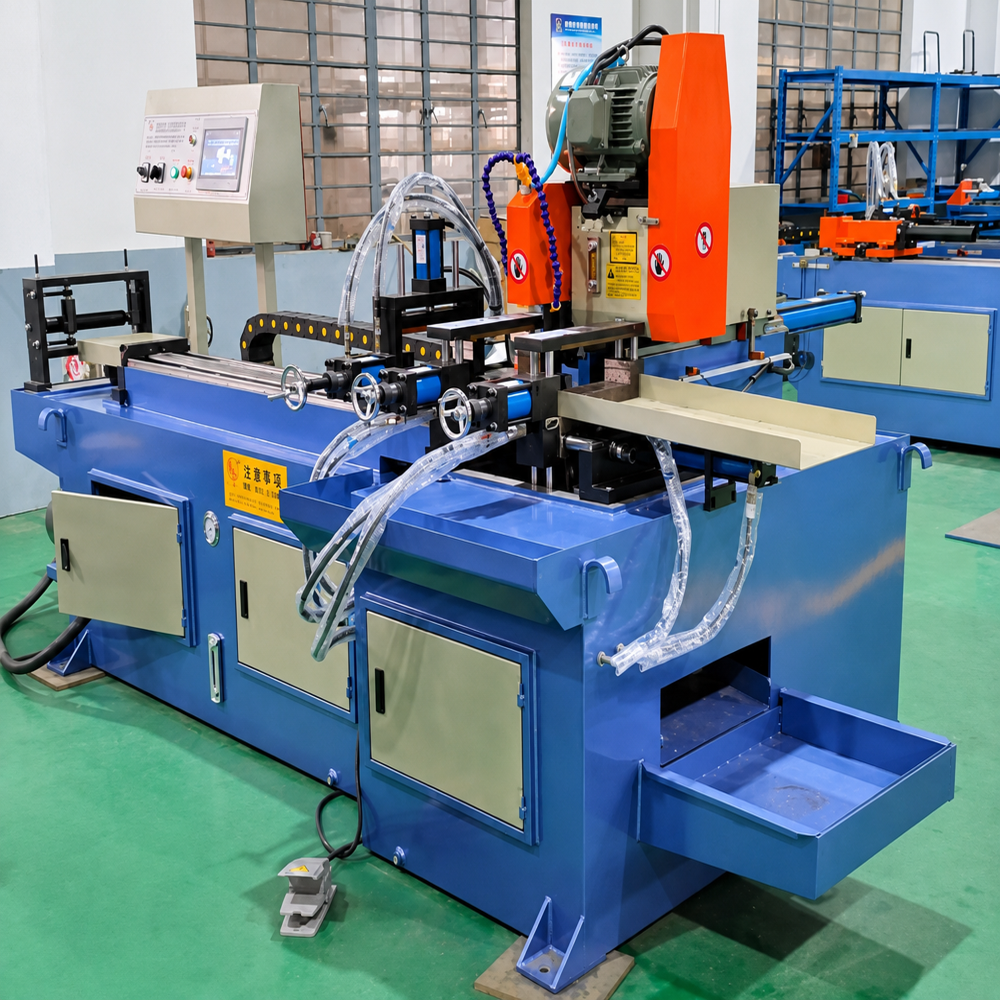

Automatic Pipe Cutting Machine

About Automatic Pipe Cutting Machine

An Automatic Pipe Cutting Machine is an industrial machine designed to cut metal pipes or tubes accurately and efficiently with minimal operator intervention. It automatically feeds the pipe, measures the required length, performs the cut, and prepares the next cycle, making it ideal for mass production.

Working Principle

1. Pipe Loading
   • Pipes are loaded manually or using an automatic bundle loader.
2. Automatic Feeding
   • A servo motor feeds the pipe to the programmed length.
3. Pipe Clamping
   • Pneumatic or hydraulic clamps securely hold the pipe during cutting.
4. Cutting Operation
   • The cutting tool (circular saw blade, band saw, carbide saw, or abrasive wheel) cuts the pipe.
5. Finished Part Discharge
   • The cut pipe is automatically ejected onto a collection table.
6. Repeat Cycle
   • The machine repeats the process according to the programmed cutting length and quantity.

Main Components

• Heavy-duty machine frame
• Servo feeding system
• Pipe clamping unit
• Cutting head
• Hydraulic or pneumatic system
• PLC & HMI touch screen controller
• Length measuring encoder
• Safety guards
• Lubrication system
