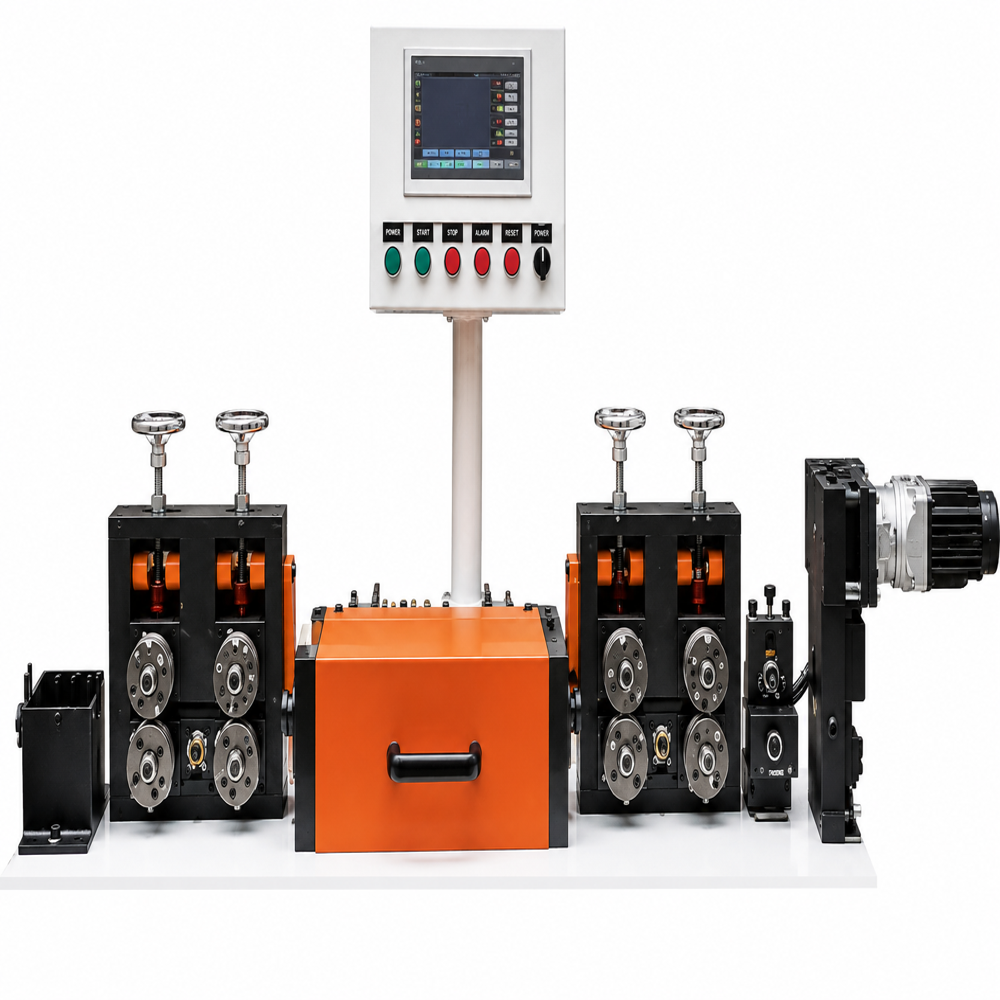

CNC Wire Straightening and Cutting Machine

About CNC Wire Straightening and Cutting Machine

A CNC Wire Straightening and Cutting Machine is an automated industrial machine used to straighten coiled wire and cut it into precise lengths. It is widely used in industries such as automotive, construction, furniture, wire products, electrical, agriculture, and manufacturing.

The machine combines wire feeding, straightening, measuring, and cutting into one fully automated process, ensuring high accuracy, high productivity, and minimal material waste.

Working Principle

1. Wire Feeding
   • Wire is unwound from a coil.
   • Feed rollers driven by servo motors pull the wire into the machine.
2. Wire Straightening
   • The wire passes through multiple horizontal and vertical straightening rollers.
   • These rollers remove bends, twists, and coil memory.
3. Length Measurement
   • A CNC controller and encoder accurately measure the required wire length.
   • The operator can program different lengths through the HMI touchscreen.
4. Wire Cutting
   • Once the programmed length is reached, the cutting unit automatically cuts the wire.
   • The finished piece is discharged into a collection tray.
5. Repeat Cycle
   • The process repeats automatically until the required quantity is completed.

Main Components

• Wire Pay-off Stand
• Servo Wire Feeding System
• Straightening Roller Assembly
• CNC Controller
• Touch Screen HMI
• Precision Encoder
• Hydraulic/Pneumatic/Servo Cutting Unit
• Collection Tray
• Electrical Control Cabinet
• Safety Covers and Emergency Stop System
