About Sliding Table Saw

A Sliding Table Saw (also called a Panel Saw or Sliding Panel Saw) is a precision woodworking machine designed to cut solid wood, plywood, MDF, particle board, laminates, and other sheet materials accurately. Unlike a conventional table saw, the workpiece is supported on a sliding carriage, which moves smoothly past the stationary saw blade, providing greater accuracy, safety, and ease of handling large panels.

Main Applications

• Cutting plywood sheets
• Cutting MDF and particle board
• Cabinet and modular furniture manufacturing
• Door and window production
• Interior decoration work
• Wooden flooring production
• Solid wood panel cutting

Main Components

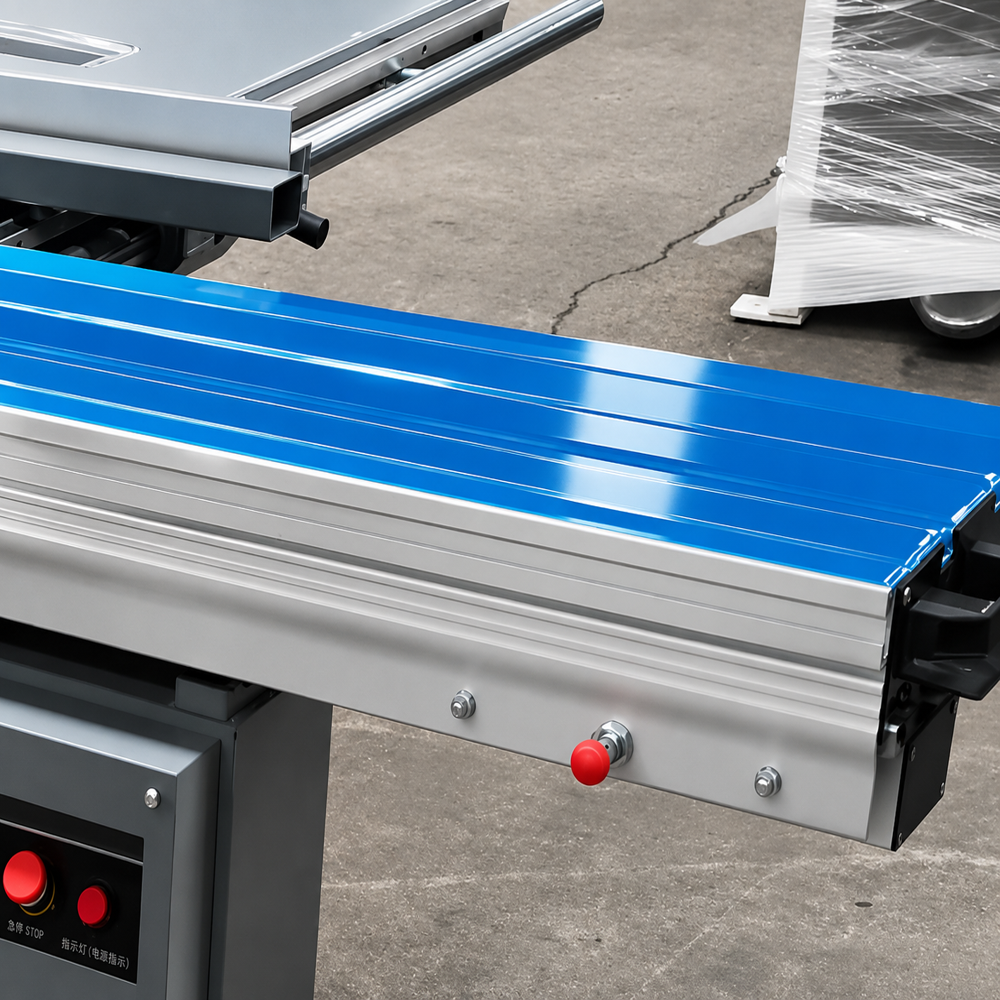

1. Sliding Table (Carriage)

• Made from aluminum alloy or hardened steel
• Moves smoothly on precision guide rails
• Supports large workpieces
• Provides highly accurate straight cuts

2. Main Saw Blade

• Performs the primary cutting operation
• Diameter: 250400 mm
• Speed: 30006000 RPM

3. Scoring Blade

• Small blade positioned ahead of the main blade
• Prevents chipping on laminated boards
• Rotates opposite to the main blade

4. Rip Fence

• Used for longitudinal cutting
• Adjustable for different widths
• Equipped with precision measuring scale

5. Crosscut Fence

• Used for cross cutting
• Adjustable angle:
  • 0
  • 45
  • Intermediate angles

6. Blade Height Adjustment

• Manual or motorized
• Controls cutting depth

7. Blade Tilt Mechanism

• Adjustable from 0 to 45
• Used for bevel cutting
