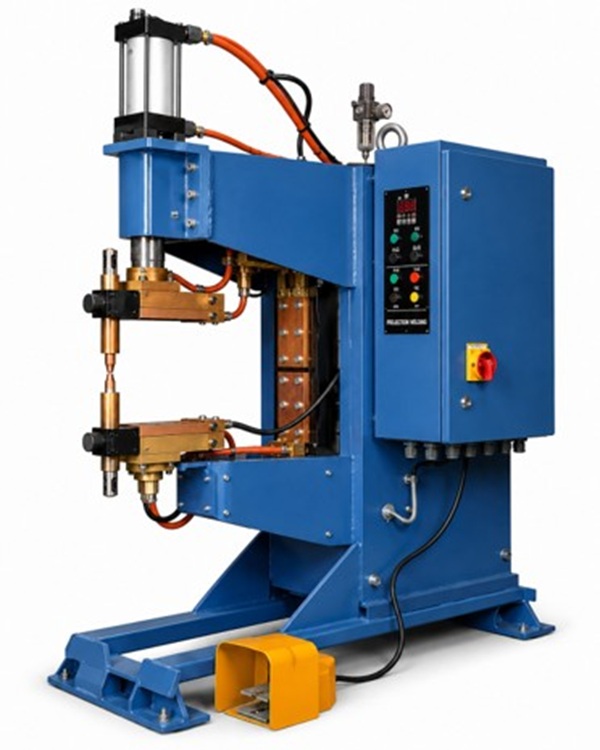

Projection Welding Machine

Price 300000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Projection Welding Machine Specification

Features
Multi Spot

Control System
Semi-Automatic, Fully Automatic, Manual

Accuracy
0.5 mm

Frequency
50 Hertz (HZ)

WorkingSpeed

Noise Level
20 db

Voltage
440 Volt (v)

Connectivity Options
Electricity

Model No
25-250KVA

Country Of Origin
India

Lubricating System
Manual

Cooling System
Water

Power Rating
3

Machine Type
Welding

Operating Temperature
35 Celsius (oC)

Frame Type
MS

Production Capacity
20 Pcs/hr

Product Type
Other

Technology
Other

Power Source
Electricity

Operating Type
Automatic

Power
35-250 kilovolt (kV)

Pressure
3 PSI

Surface Treatment
Painted

Dimension (L*W*H)
4*4*6 Foot (ft)

Weight (kg)
400 Kilograms (kg)

Color
Gray

Warranty
1 Year

Usage & Applications
Welding

Projection Welding Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Moradabad

Payment Terms
Others

Supply Ability
5 Pieces Per Week

Delivery Time
20 Days

Packaging Details
Bubble Wrap Packaging

Main Domestic Market
All India

About Projection Welding Machine

A Projection Welding Machine is a specialized resistance welding machine used to join two or more metal parts by concentrating electrical current and pressure at small raised areas called projections. These projections generate heat due to electrical resistance, causing the metal to fuse together.

Projection welding is widely used in the automotive, electrical, appliance, and sheet metal industries for high-speed, repeatable production.

Working Principle

Projection welding operates on the same principle as spot welding:

The workpieces are placed between two copper electrodes.
One of the parts has one or more embossed projections.
The electrodes apply a preset force.
A high electric current passes through the projections.
Heat is generated due to electrical resistance.
The projections collapse under pressure, forming strong weld nuggets.
The current stops, and the joint solidifies under pressure.

Main Components

Machine frame
Upper and lower copper electrodes
Pneumatic or hydraulic pressure system
Welding transformer
Welding controller
Water cooling system
Foot pedal or automatic control
Safety guards

Types of Projection Welding Machines

1. Stationary Projection Welding Machine

Manual loading and unloading
Suitable for medium-volume production

2. Automatic Projection Welding Machine

PLC-controlled
Conveyor or robotic loading
High production efficiency

3. Multi-Head Projection Welding Machine

Multiple welds completed simultaneously
Ideal for mass production

4. Servo Projection Welding Machine

Servo-controlled electrode force
High precision and repeatability
Energy efficient
Projection welding is commonly used for:
- Welding nuts to sheet metal
- Welding bolts and studs
- Automotive body components
- Cross-wire mesh manufacturing
- Electrical contacts
- Battery tabs
- Sheet metal brackets
- Household appliance components
- Furniture frames
- Stainless steel assemblies
Advantages
- High production speed
- Strong and consistent weld quality
- Multiple projections can be welded in one cycle
- Less electrode wear than spot welding
- Good appearance with minimal surface marking
- Easy to automate
- High repeatability
- Suitable for medium and high-volume manufacturing
Limitations
- Requires specially formed projections
- Higher tooling cost
- Best suited for conductive metals
- Accurate alignment is essential
- Not ideal for very thick materials
